PySimpleGUI Canvas object goes down, right when dragging

Python Help
1

I have implemented a way to select objects and drag them. But there is one problem, everytime I tried to drag, the object goes down and right fast instead of following my mouse. I tried every solution, it won’t work. If you want to help me, here’s the code:

import PySimpleGUI as sg

sg.theme('DefaultNoMoreNagging')

items_files = [  [sg.Button(pad = (0, 0), tooltip = 'Delete from Frontmost', key = 'DelF')]  ]

tab2 = [  [sg.Button(key = 'Rect', pad = (0, 0), tooltip = 'Rectangle')]  ]

BC = 'white'
CW = 600
CH = 450
LXM = (CW / 2)
LYM = (CH / 2)

mid_left = [  [sg.Text(text = "X:"), sg.Input(default_text = "0", key = "TLX", size = (3, 1))],
              [sg.Text(text = "Y:"), sg.Input(default_text = "0", key = "TLY", size = (3, 1))],
              [sg.Text(text = "Scale X:"), sg.Input(default_text = "0", key = "TSX", size = (3, 1))],
              [sg.Text(text = "Scale Y:"), sg.Input(default_text = "0", key = "TSY", size = (3, 1))]  ]

can = sg.Canvas(size = (CW, CH), background_color = BC, border_width = 1, key = "canvas")

mid_screen = [  [sg.Frame("Insert Values", mid_left, expand_x = True, expand_y = True), can]  ]

layout = [  [sg.Frame("", items_files, pad = (1, 1), expand_x = False, expand_y = False), sg.TabGroup([[sg.Tab('Insert', tab2)]])],
            [mid_screen]  ]
window = sg.Window('title', layout, finalize = True)
tkc = can.TKCanvas
while True:
    event, values = window.read()
    if event in (None, sg.WIN_CLOSED, 'Exit'):
        break
    N = 0

    OL = [0]

    TLX = values["TLX"]
    TLY = values["TLY"]
    TSX = values["TSX"]
    TSY = values["TSY"]
    LT = 1
    FC = 'red'
    LC = 'black'

    def sel(e):
        print (e)

    def move(e):
        tkc.move(e.widget.find_withtag('current'), e.x, e.y)

    def DeleteObj():
        pum = N
        tkc.delete(OL[pum])
        del OL[pum]
        pum = N - 1

    if event == 'Rect':
        OL.insert(N, tkc.create_rectangle((float(LXM) + float(TLX) + float(TSX)), (float(LYM) + float(TLY) + float(TSY)), (float(LXM) + float(TLX) - float(TSX)), (float(LYM) + float(TLY) - float(TSY)), fill = FC, outline = LC, width = LT,  tag = N))
        tkc.tag_bind((N + 1), '<1>', sel)
        tkc.tag_bind((N + 1), '<B1-Motion>', move)
        N = N + 1
        print (OL)
        print (N)

    if event == 'DelF':
        DeleteObj()
        print (OL)
        print (N)

window.close()
2

tkc.move(...) moves the widget relative to its current position, e.g. move it 10 pixels to the right. What you want is tkc.moveto(...).

3

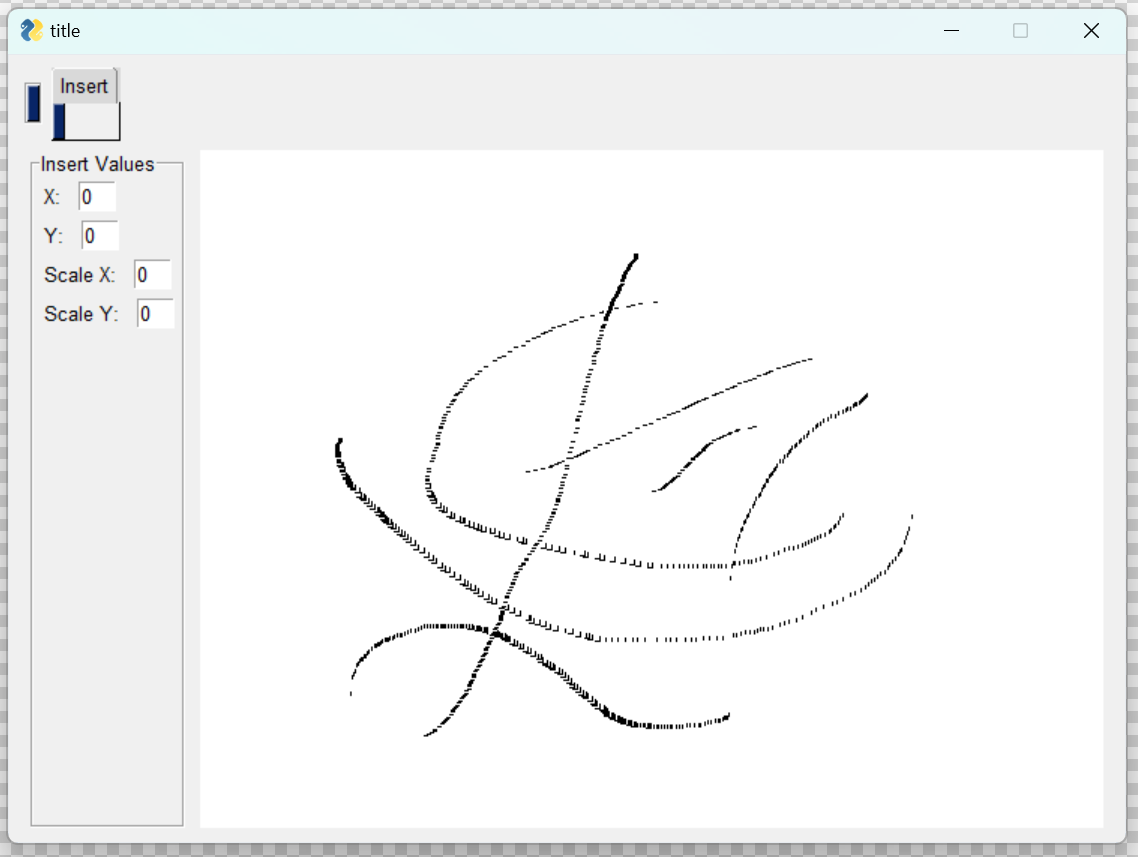

Thanks. But, if the line width or line thickness is a decimal (e.g. “2.5”), it will “draw” instead of move (which might indicate I am inserting more squares than possible). What should I do to eliminate the trail behind as I drag around the canvas? Also, how to I delete objects, now the DeleteObj function is not working anymore.

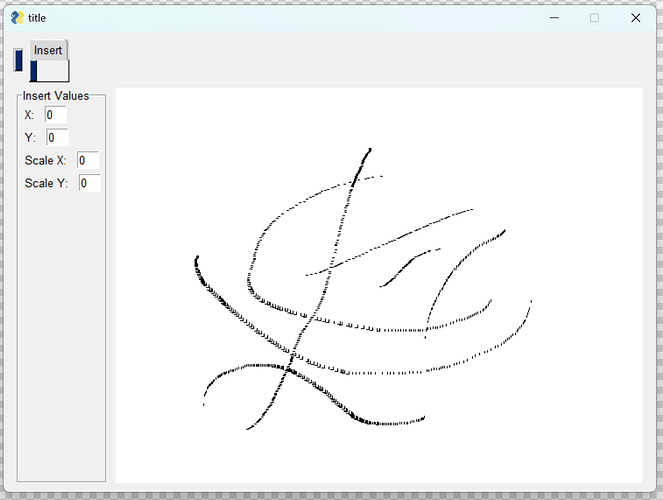

Screenshot 2023-06-23 070110
Screenshot 2023-06-23 0701101138×857 52 KB
